CAEN Educational Software

Every teaching kit talks to a different piece of software

Eleven kits, three ways of being controlled: one shared platform, a dedicated app, or no software at all – just the module and an SD card. This page lays out what each kit needs.

HERA: one platform, three kits

Desktop, Windows. Anyone who owns more than one of these three kits installs HERA just once.

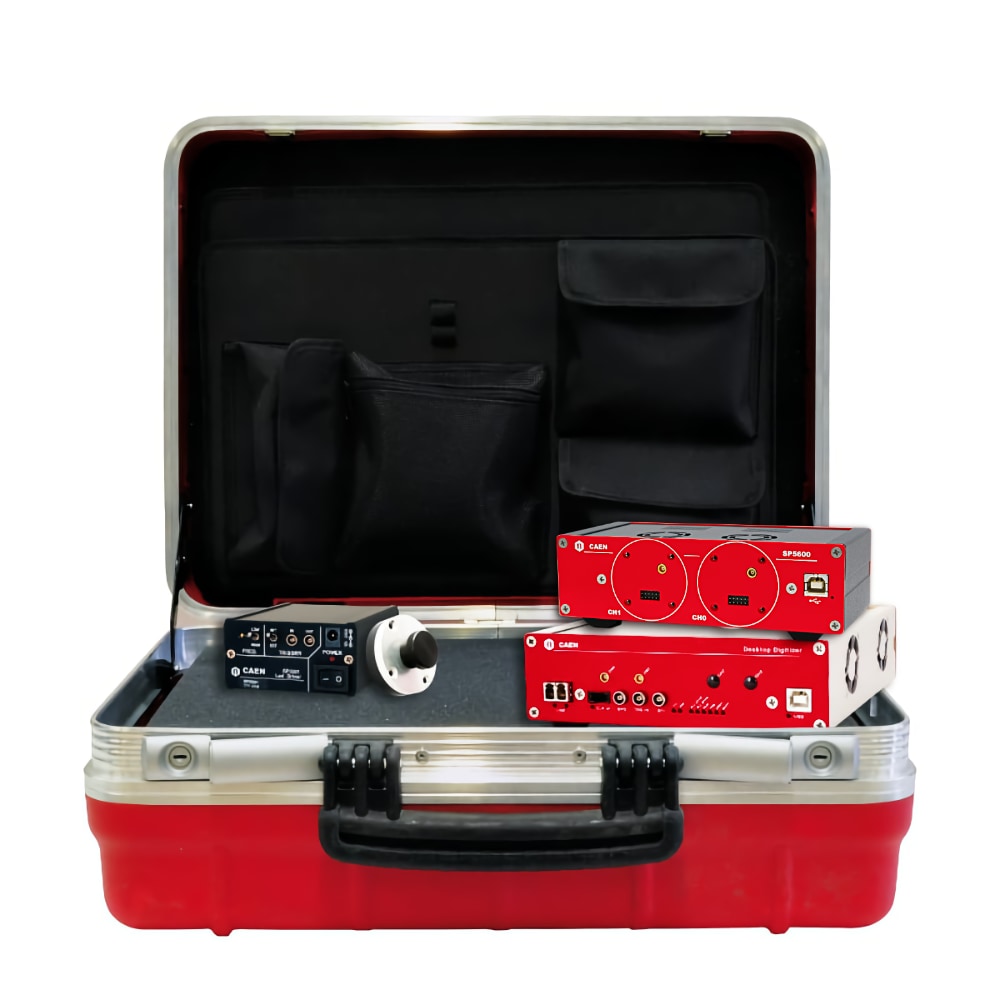

SP5600E

Educational Photon Kit

Statistics, SiPM characterization, single-photon counting.

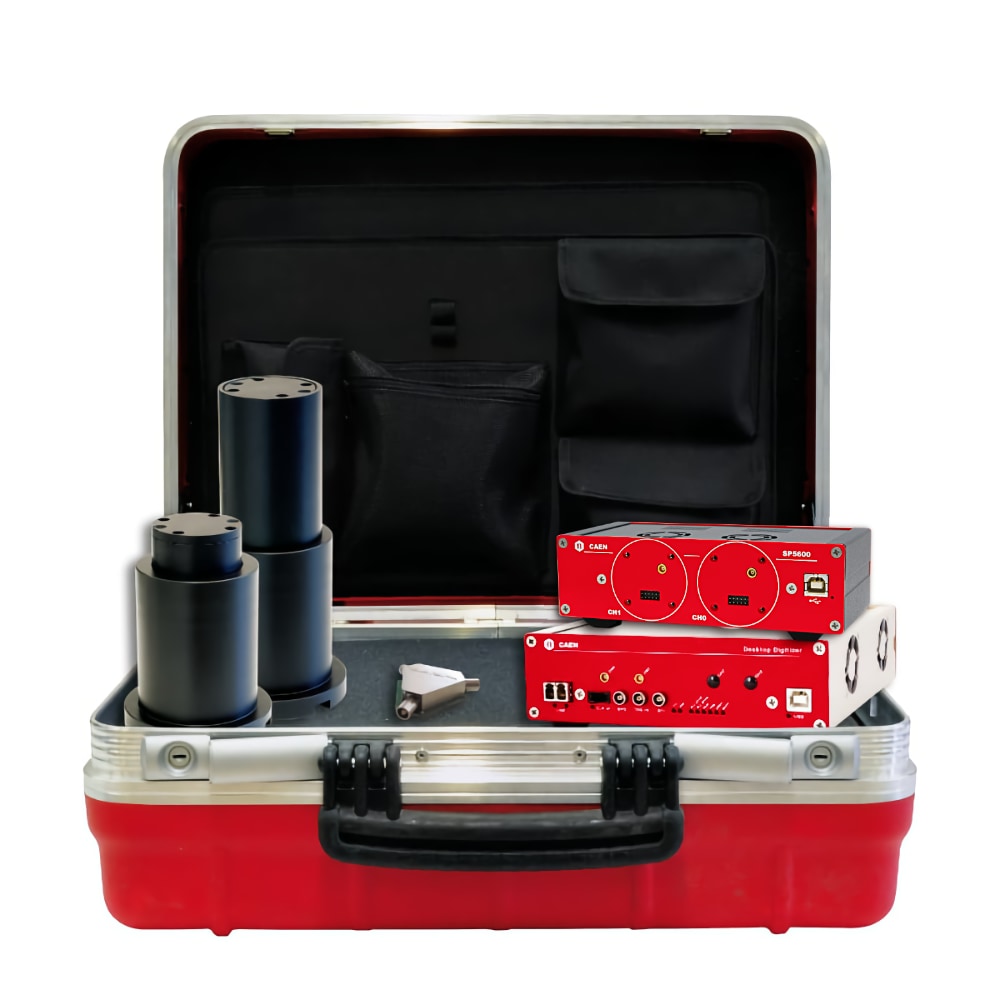

SP5600C

Educational Gamma Kit

Gamma spectroscopy, system linearity, energy resolution.

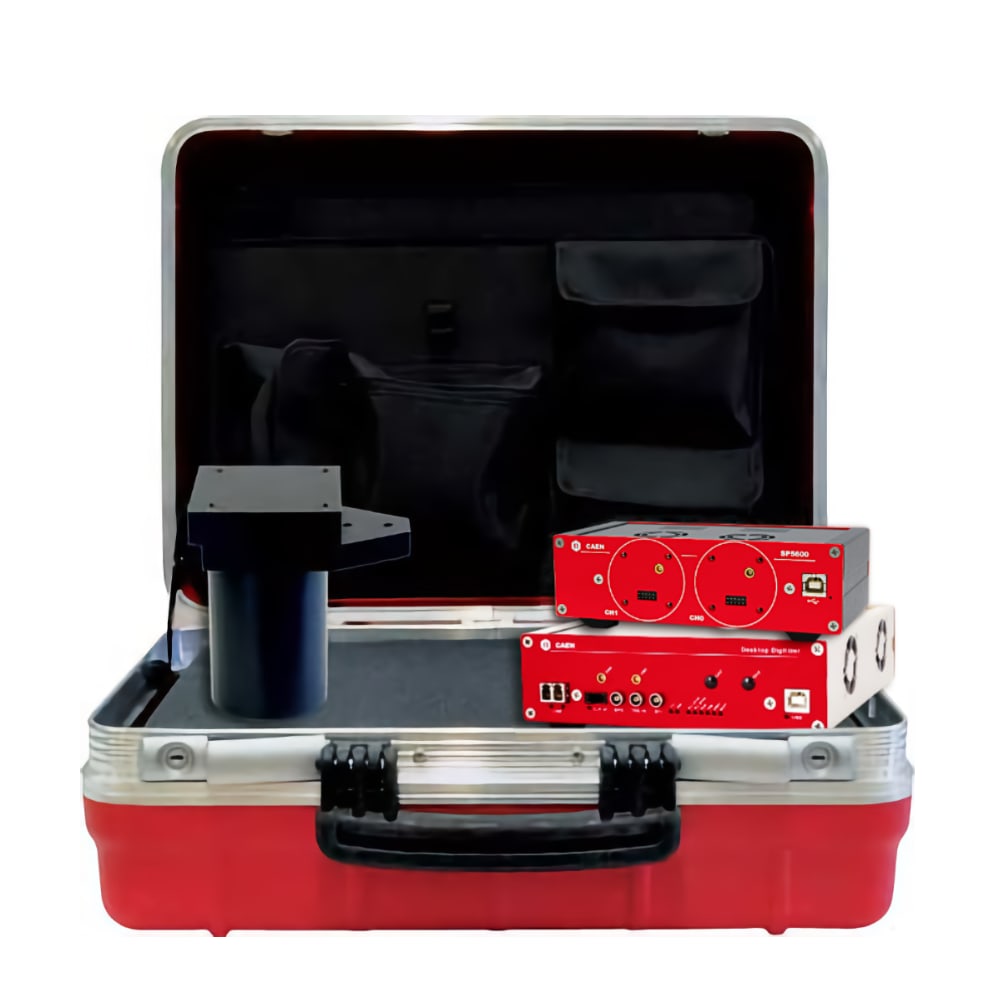

SP5600D

Educational Beta Kit

Beta spectroscopy, cosmic rays, radiation-matter interaction.

Dedicated apps: one kit, one piece of software

Each kit below has its own application, built around the specific experiment it runs.

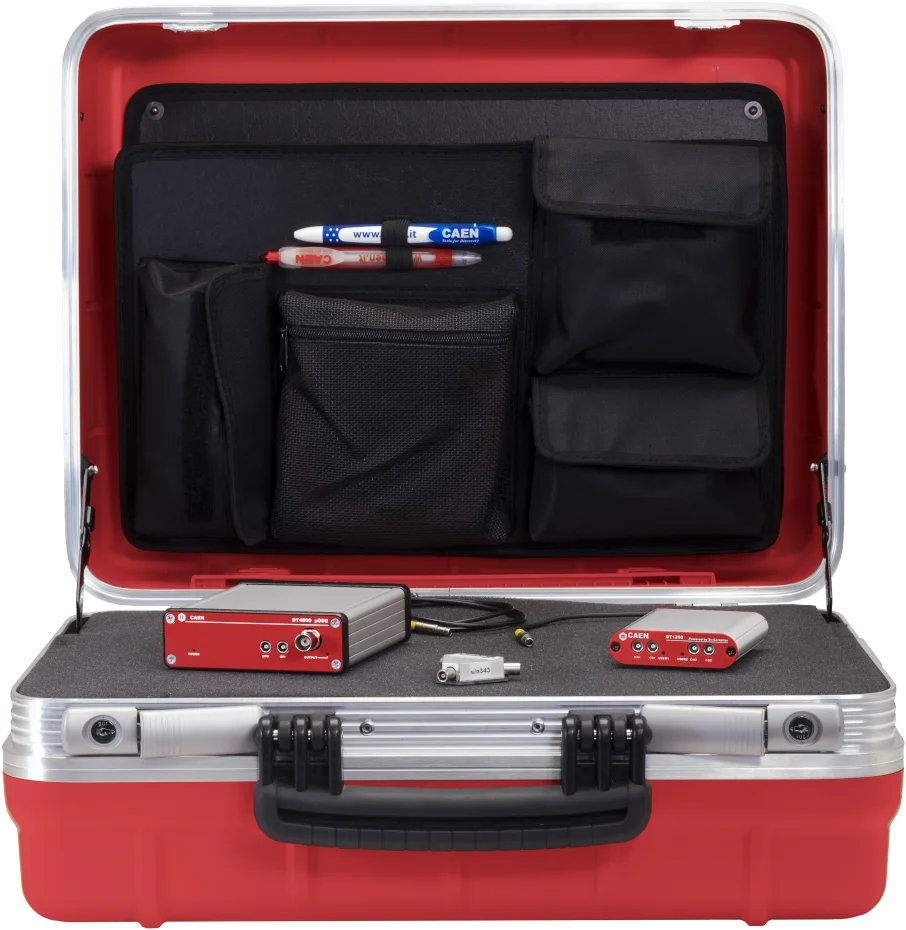

SP5650 – Open FPGA Kit

Firmware built from graphical blocks; exports VHDL and C libraries.

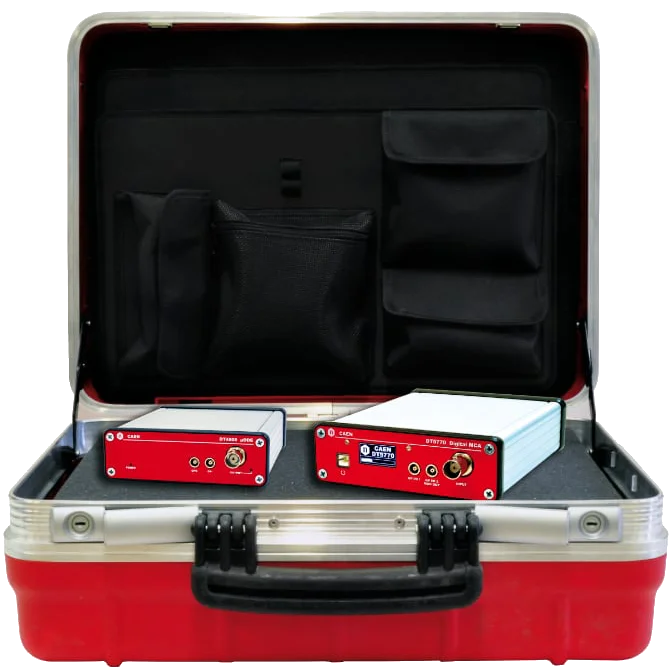

SP5600EMU – Emulation Kit

One GUI drives both DT4800 and DT5770 to simulate detector signals.

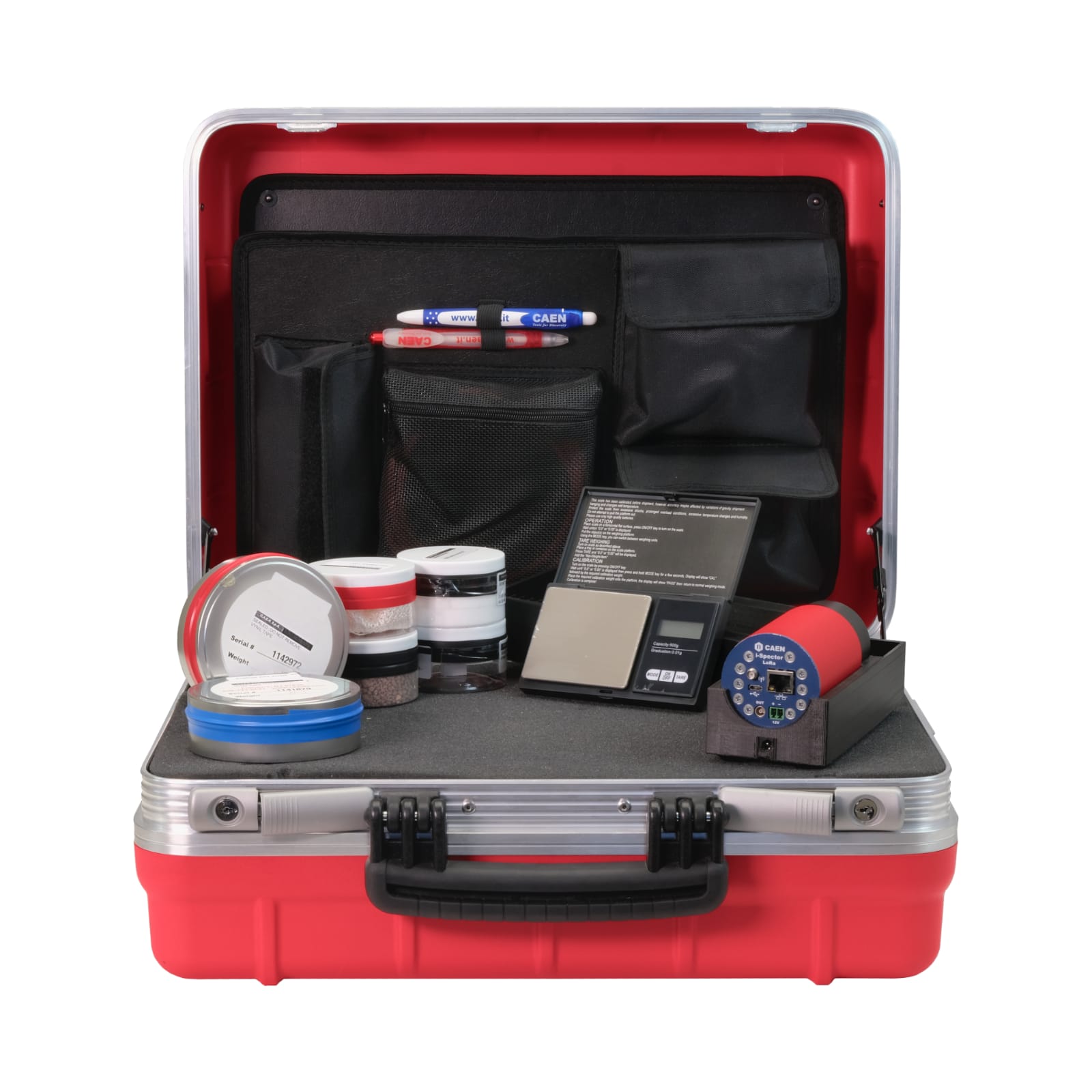

SP5630EN

Environmental Kit – Gamma Radiation Measurements.

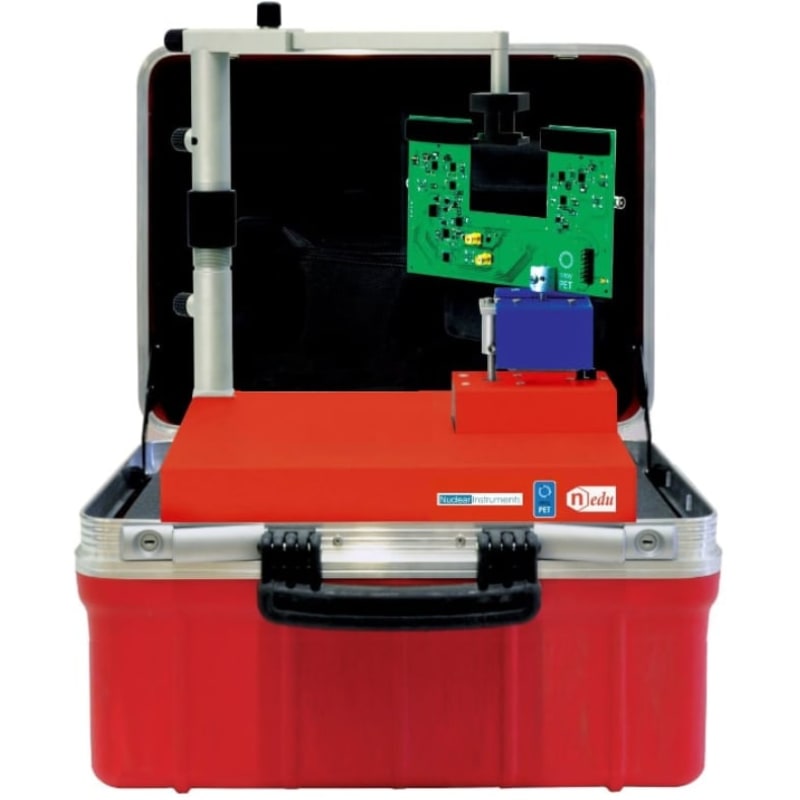

SP5700 – EasyPET

Real-time PET image reconstruction, Visual Basic GUI.

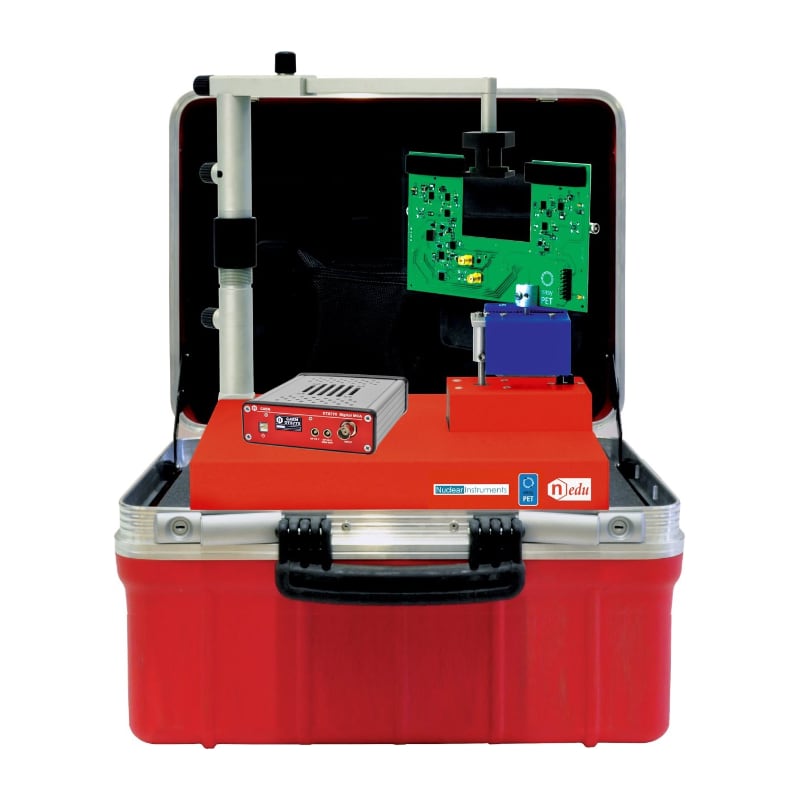

SP5701 – EasyPET Kit

Same control software as SP5700, paired with the DT5770 MCA.

SP5660 – RockyRAD

Educational Gamma Kit

Gamma spectroscopy, system linearity, energy resolution.

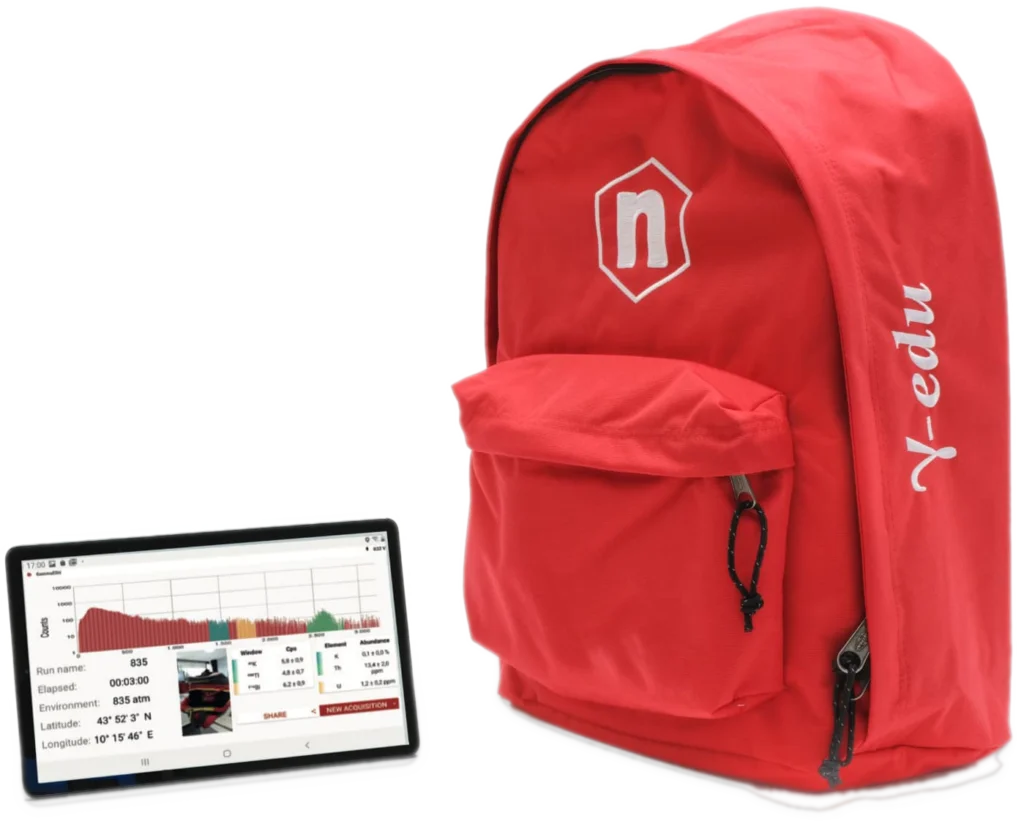

SP5640 – Backpack Radiation Detector (Gamma Edu)

Field spectrum with GPS tagging on a 10″ Android tablet (included); exports to .kmz for Google Earth.

No software required

Controls live on the module itself, data saved to an SD card.

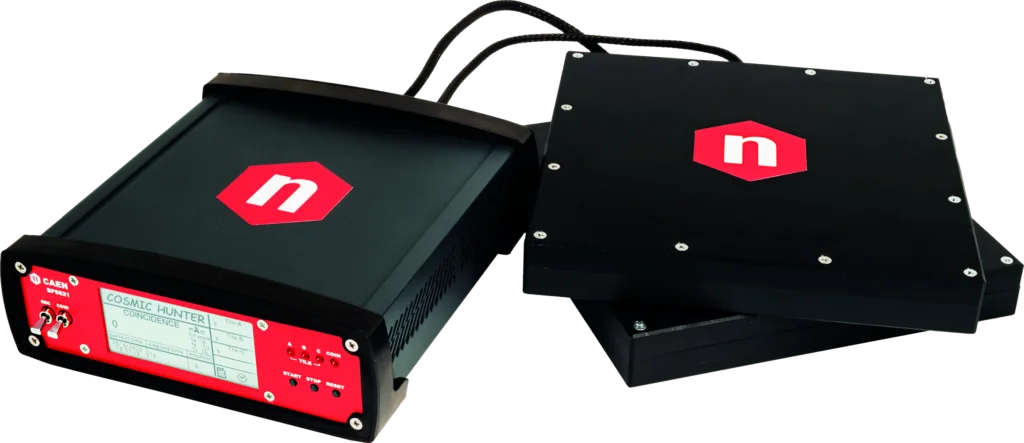

SP5620CH – Cosmic Hunter

Built-in E Ink display, data exported via SD card.

Full reference table

All eleven kits, at a glance.

Kit Name Software Platform Notes
SP5600E Educational Photon Kit HERA Desktop, Windows (LabVIEW-based) Statistics, SiPM, photons
SP5600C Educational Gamma Kit HERA Desktop, Windows (LabVIEW-based) Gamma spectroscopy, energy resolution
SP5600D Educational Beta Kit HERA Desktop, Windows (LabVIEW-based) Beta spectroscopy, cosmic rays
SP5650 Open FPGA Kit DT4800 SW + SCI-Compiler Windows; generated code portable to Win/Linux/macOS Generates VHDL / C libraries
SP5600EMU Emulation Kit Emulation Control SW Desktop – GUI for DT4800 + DT5770 No radioactive source
SP5700 EasyPET Easy PET Control SW Desktop Visual Basic GUI
SP5701 EasyPET Kit Easy PET Control SW Desktop With DT5770 MCA
SP5640 Backpack Radiation Detector (Gamma EDU) GammaEDU App, Maps, MC2 Analyzer Android tablet (included, 10″) GPS tagging, .kmz export
SP5660 RockyRAD RockyRAD App Android 11+ (Google Play), Bluetooth Rocks and minerals, CPM/dose display
SP5630EN Environmental Kit – Gamma Radiation Measurements i-Spector Web Interface Embedded web, nothing to install Live spectrum, peak fitting, data download
SP5620CH Cosmic Hunter – On-module + SD card Dedicated software in development
