Educational kits

A modern, digital and flexible platform developed by CAEN for teaching the fundamentals of Statistics & Nuclear and Modern Physics.

CAEN realized different modular Educational Kits. The set-up are mostly based on Silicon Photomultipliers (SiPM) state of-the-art sensor of light with single-photon sensitivity and unprecedented photon number capability. The goal is to inspire students and guide them towards the analysis and comprehension of different physics phenomena with a series of experiments based on state-of-the-art technologies, instruments and methods.

The devices are put together to form educational kits, suitable to a specified application in Nuclear and Modern Physics fields. Moreover three educational kits, “Educational Gamma Kit”, “Educational Beta Kit” and “Educational Photon Kit”, are included in the “Educational Kit – Premium Version” that allows the user to perform almost entirely the Handbook experiments.
The “Emulation Kit” allows to perform a series of lab experiments related to gamma spectroscopy with no radioactive source and detector, but simulating the signals produced by the interaction of a particle with the detecting unit.
The “EasyPET” is the only not modular system. It is a user friendly and portable PET system that allows the user to perform nuclear imaging experiments.

Experiments
SP5600EMUEmulation Kit SG6112B, SG6113A, SG6114, SG6117B
SP5701EasyPet Kit SG6134, SG6113, SG6132, SG6131
SP5620CHCosmic Hunter SG6220
SP5640GammaEDU Backpack Radiation Detector  SG6020E, SG6116E, SG6112E, SG6113E, SG6114E, SG6117E, SG6118E, SG6150E, SG6151E, SG6152E, SG6153E, SG6154E, SG6153E
SP5600DEducational Beta Kit SG6121, SG6123, SG6124, SG6211, SG6212
SP5600ANEducational Kit – Premium Version SG6114, SG6140, SG6221, SG6222, SG6212, SG6211, SG6124, SG6123, SG6121, SG6117, SG6116, SG6115, SG6113, SG6112
SP5600CAdvanced and compact solutions for Nuclear & Particle Physics experiments SG6114, SG6140, SG6117, SG6116, SG6115, SG6113, SG6112, SG6111
SP5600EAdvanced and compact solutions for Nuclear & Particle Physics experiments SG6112B, SG6113A, SG6117B, SG6221, SG6222, SG6212, SG6211, SG6114B, SG6012, SG6011
SP5630ENPEnvironmental Kit Plus SG6145, SG6114A, SG6144, SG6143, SG6142, SG6140
SP5630ENEnvironmental Kit SG6145, SG6114A, SG6144, SG6143, SG6142, SG6140
SP5650Open FPGA Kit SG6111, SG6112, SG6113
SP5622BDetection System Plus SG6220, SG6219, SG6218, SG6217, SG6216, SG6215, SG6214, SG6210, SG6211A

SP5600EMU Emulation Kit

Create and Analyze a radioactive source

This kit allows the user to perform a series of lab experiments without using a radioactive source and a detector, by simulating the signals produced by the interaction of particles with the detecting unit. The General purpose Power Supply and Amplification Unit …

Activities with SP5600EMU
Learn More

SP5701 Easypet Kit

2D image reconstruction in real-time to explore Nuclear Imaging World

EasyPET is a simple, user friendly and portable didactic PET system developed for high-level education, which allows exploring the physical and technological principles of the conventional human PET scanners, using the same basic detectors of state-of- the-art systems.

Activities with SP5701
Learn More

SP5620CH Cosmic Hunter

A new educational tool to improve the analysis and comprehension of cosmic rays.

Cosmic Hunter is a simple and portable device from a lab desk to a hot-air balloon. It was indeed employed at the 42nd International Balloon Festival in Château-d’Oex to commemorate cosmic-ray pioneers.

Activities with SP5620CH
Learn More

SP5640 GammaEDU

Just one tablet click to perform radioactive measurements outdoor

A portable detection backpack for revealing the presence of radioactive materials in the environment. The high efficiency of the scintillation crystal allows the user to perform a measurement in few minutes.

Activities with SP5640
Learn More
https://www.caen.it/products/sp5600d/

SP5600D Educational Beta Kit

From detector characterization to cosmic rays detection

The Educational Beta kit is high-level instrumentation. The kit addresses experiments on cosmic rays, from simple muons detection to flux estimation and angular distribution, using advanced tools for statistical analysis.

Activities with SP5600D
Learn More
https://www.caen.it/products/sp5600an/

SP5600AN Educational Kit – Premium Version

Advanced and compact solutions for Nuclear & Particle Physics experiments

The CAEN Educational kits are modern, digital, and flexible platforms developed by CAEN for teaching the fundamentals of Statistics & Nuclear, and Modern
Physics.

Activities with SP5600AN
Learn More
https://www.caen.it/products/SP5600C/

SP5600C Advanced and compact solutions for Nuclear & Particle Physics experiments

Educational Gamma Kit

The CAEN Educational kits are modern, digital, and flexible platforms developed by CAEN for teaching the fundamentals of Statistics & Nuclear, and Modern
Physics.

Activities with SP5600C
Learn More

SP5600E Advanced and compact solutions for Nuclear & Particle Physics experiments

Educational Photon Kit

The CAEN Educational kits are modern, digital, and flexible platforms developed by CAEN for teaching the fundamentals of Statistics & Nuclear, and Modern
Physics.

Activities with SP5600E
Learn More
https://www.caen.it/products/sp5630en-plus/

SP5630ENP Environmental Kit Plus

Gamma Radiation and Shielding Laboratory

Radioactivity is around us and getting to know it experimentally is essential for physics students. Gamma spectroscopy is instrumental for understanding the mechanism of the interaction with matter and the fundamentals of detection.

Activities with SP5630ENP
Learn More
https://www.caen.it/products/sp5630en/

SP5630EN Environmental Kit

Discover the environment that surrounds us

To increase the familiarity with Environmental Radioactivity Field, CAEN designed a dedicated educational kit, based on a Silicon Photomultipliers (SiPM) matrix coupled to a CsI Scintillator.

Activities with SP5630EN
Learn More

SP5650 Open FPGA Kit

Programming with SCI-Compiler like setup an experiment

The Open FPGA kit allows the user to perform a series of lab experiments without using radioactive source and detector, by simulating the signals and to create specific processing of pulses.

Activities with SP5650
Learn More

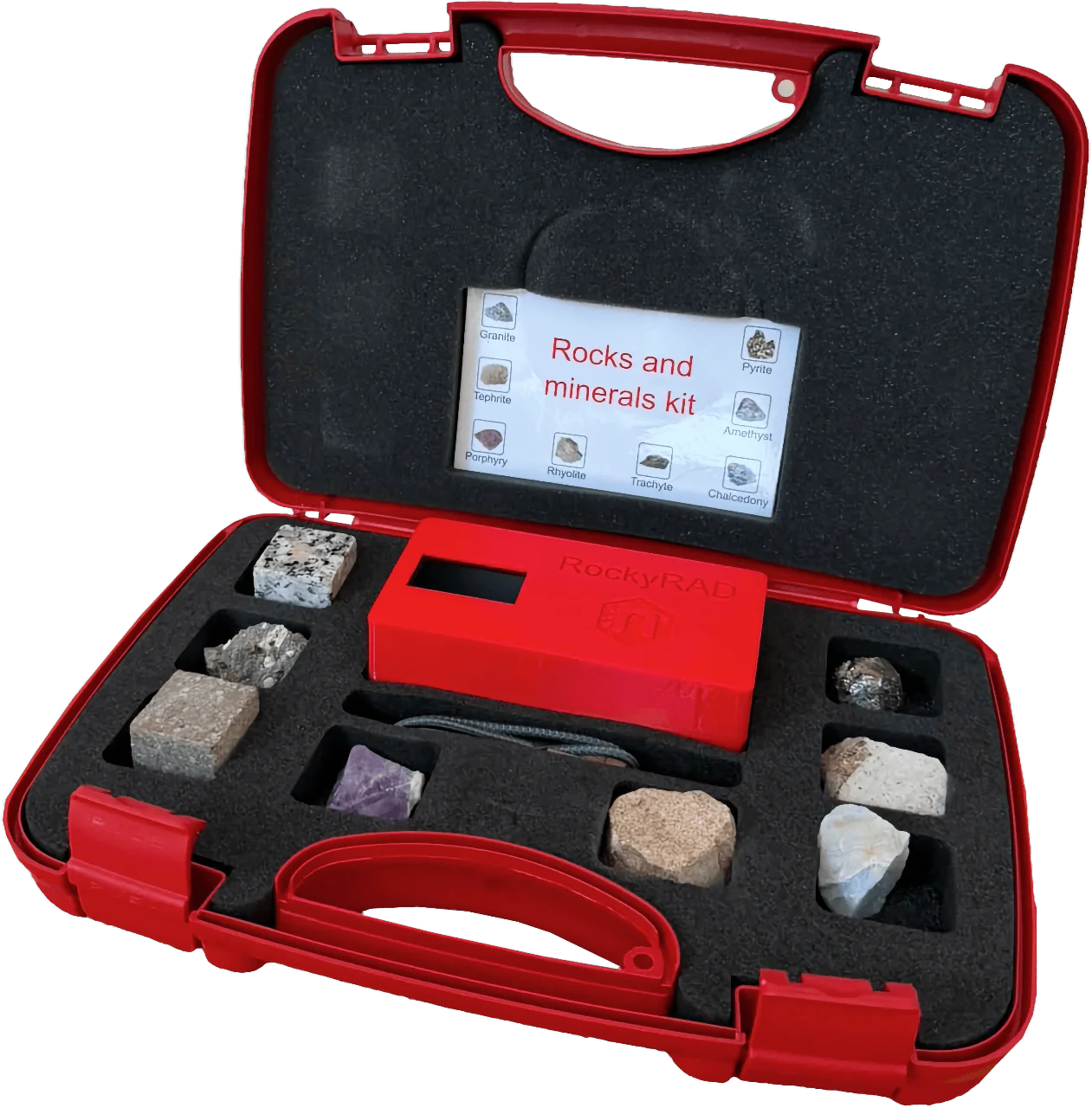

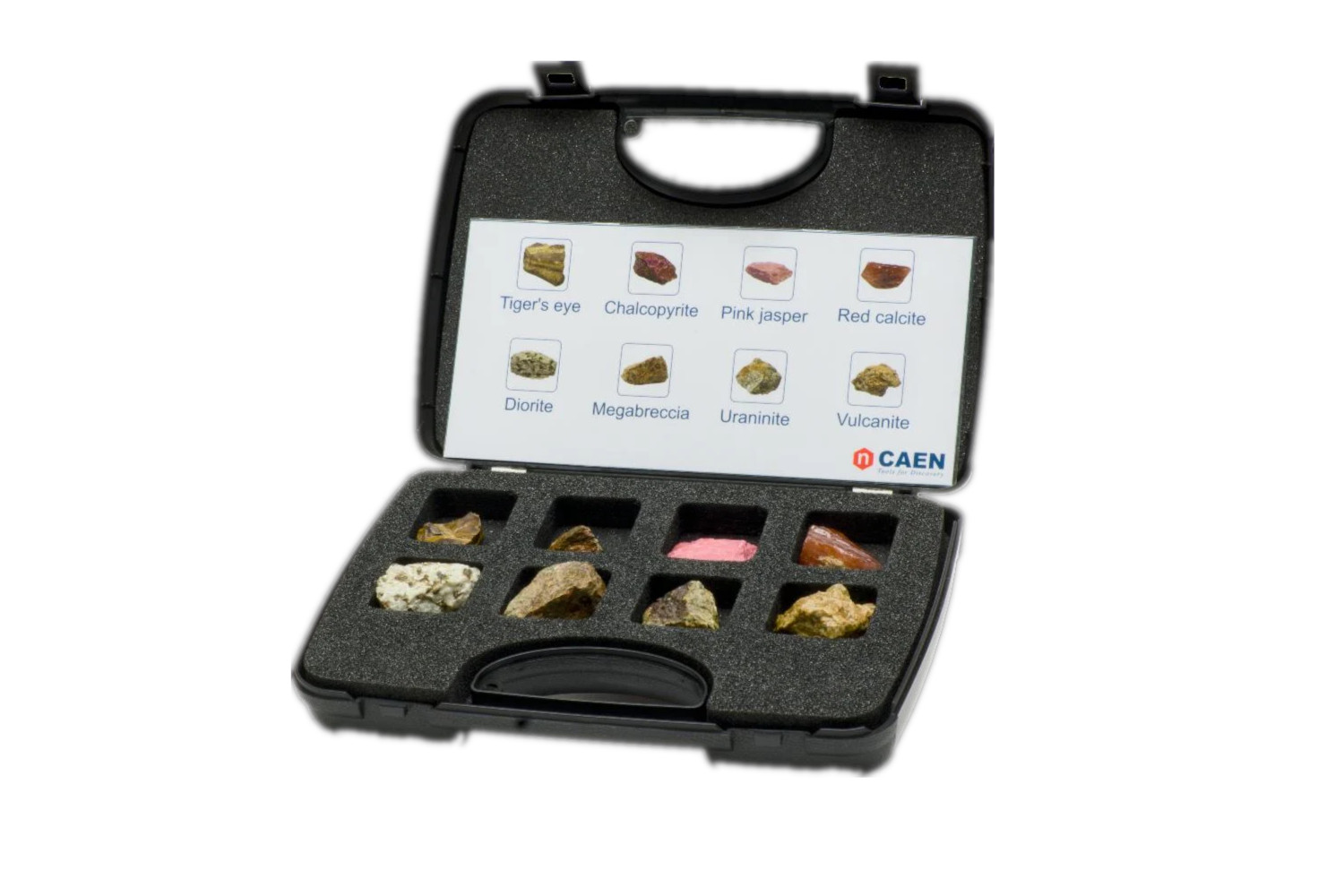

SP5660 RockyRad

Portable geiger counter for nuclear radiation

RockyRad is a portable geiger counter for nuclear radiation detection, based on raspberry Pi Pico, with a mobile interface.

Activities with SP5660
Learn More

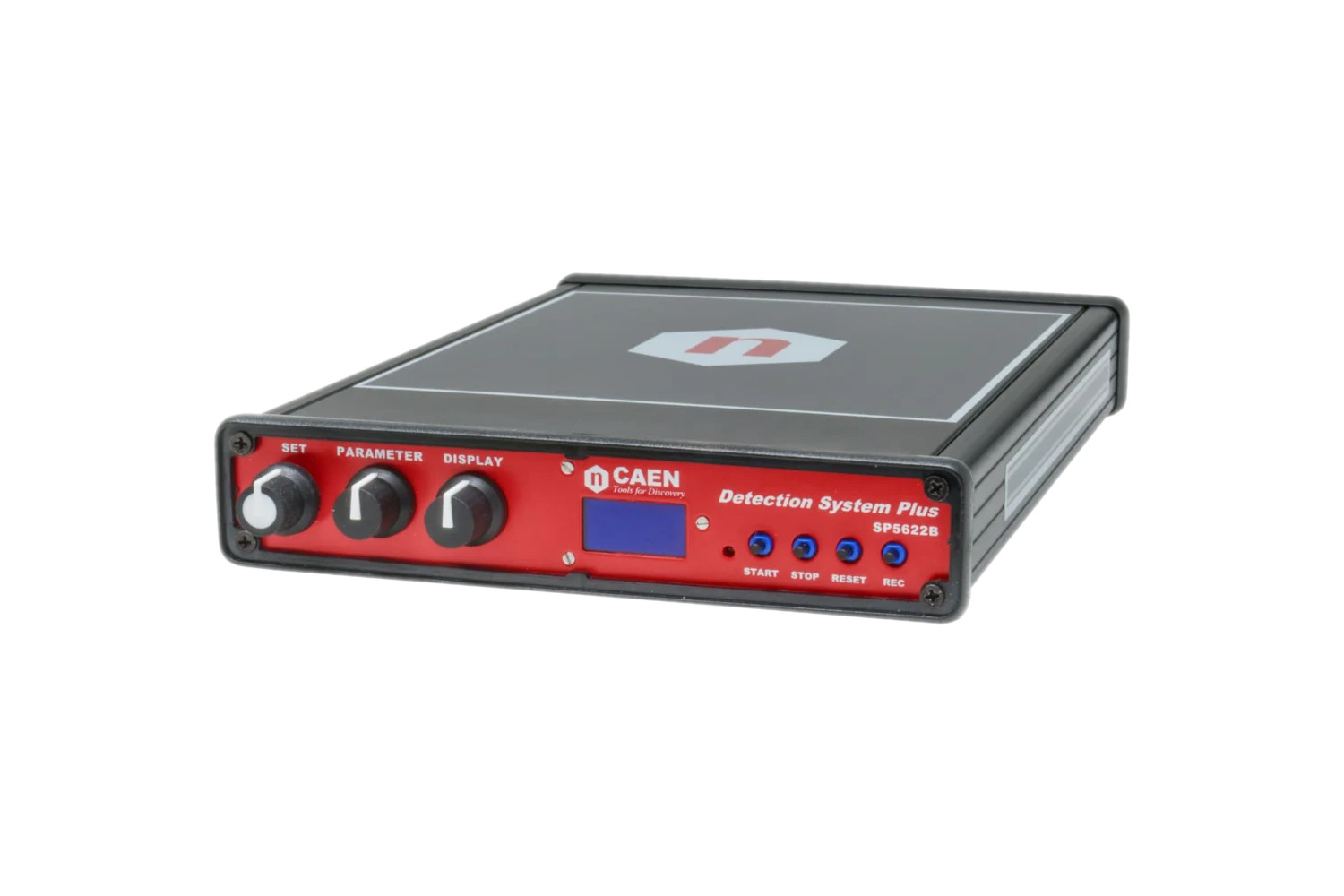

SP5622B Detection System Plus

Portable scintillating tile for cosmic rays detection

The Detection System Plus, SP5622B, is a user-friendly system for cosmic-ray detection. It can be used as a didactic instrument or as an external trigger system for another experimental setup.

Activities with SP5622B
Learn More

Accessories

https://www.caen.it/products/sp5608/

SP5608 – Scintillating Tile

https://www.caen.it/products/sp5622/

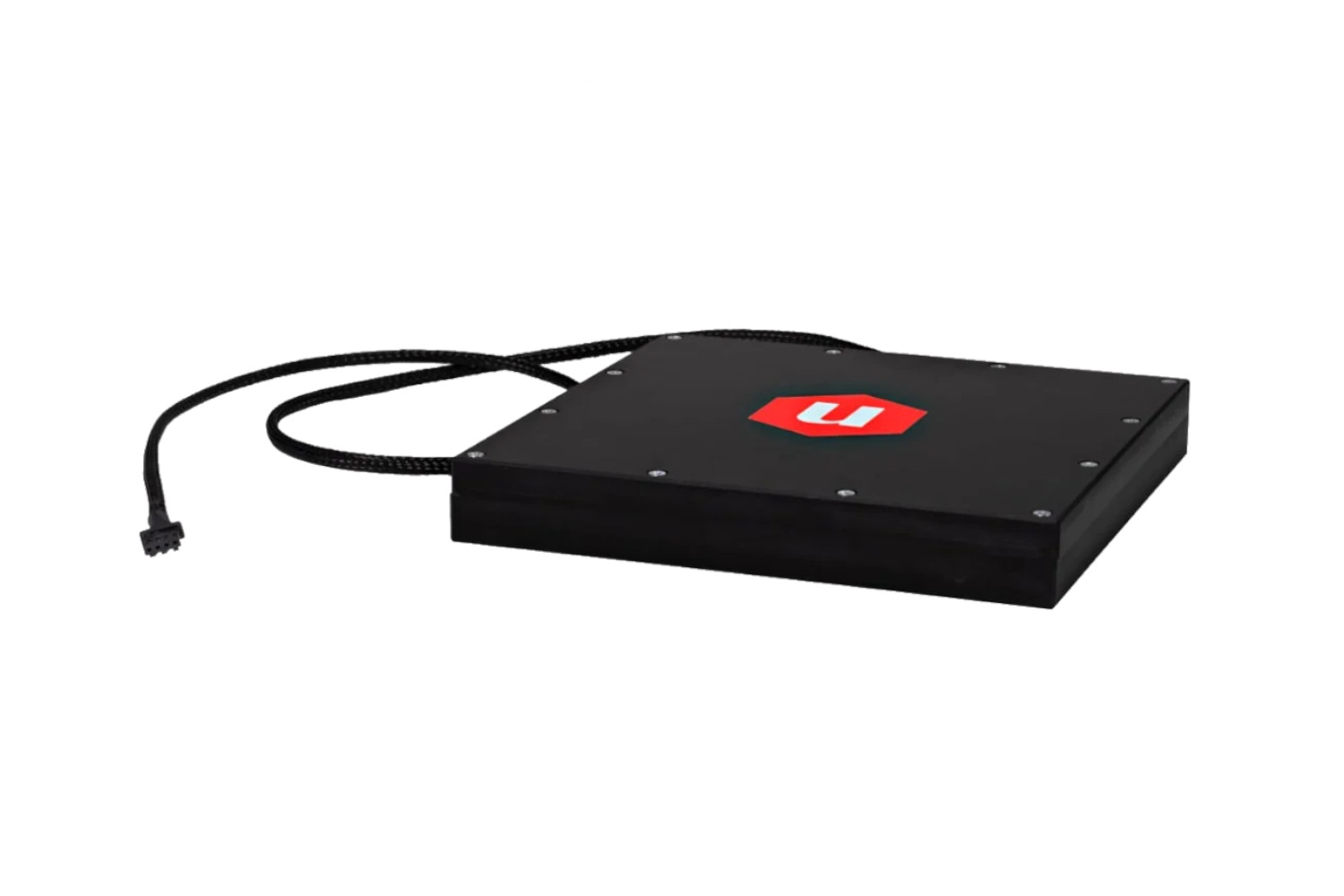

SP5622 – Detection system

https://www.caen.it/products/sp5607/

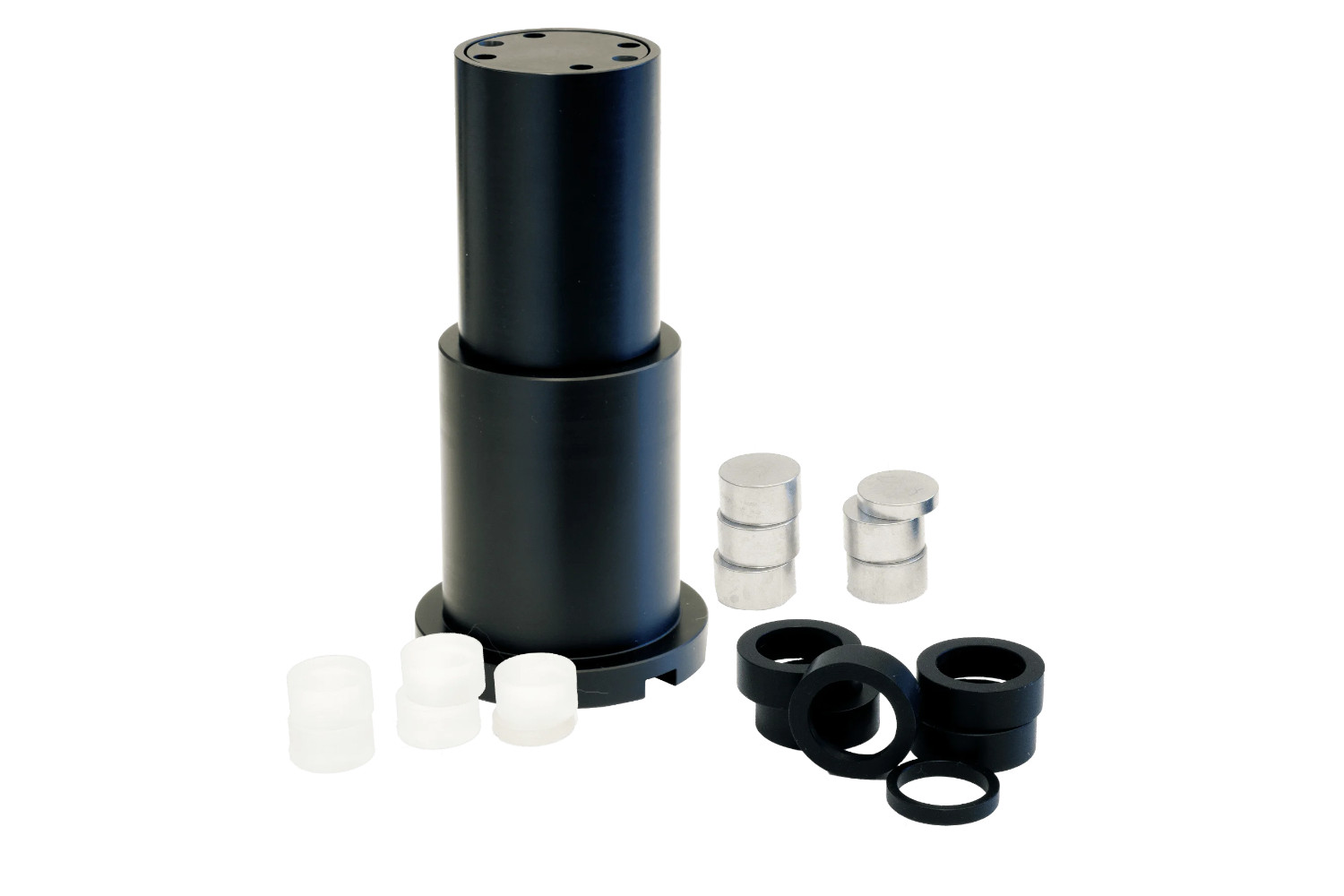

SP5607 – Absorption Tool
